Low cost prototyping board for the NXP LPC2106 ARM7 microcontroller. The board contains all the power, reset and programming circuitry necessary, and contains a large prototyping area.
A FreeRTOS.org demo is available for this board.

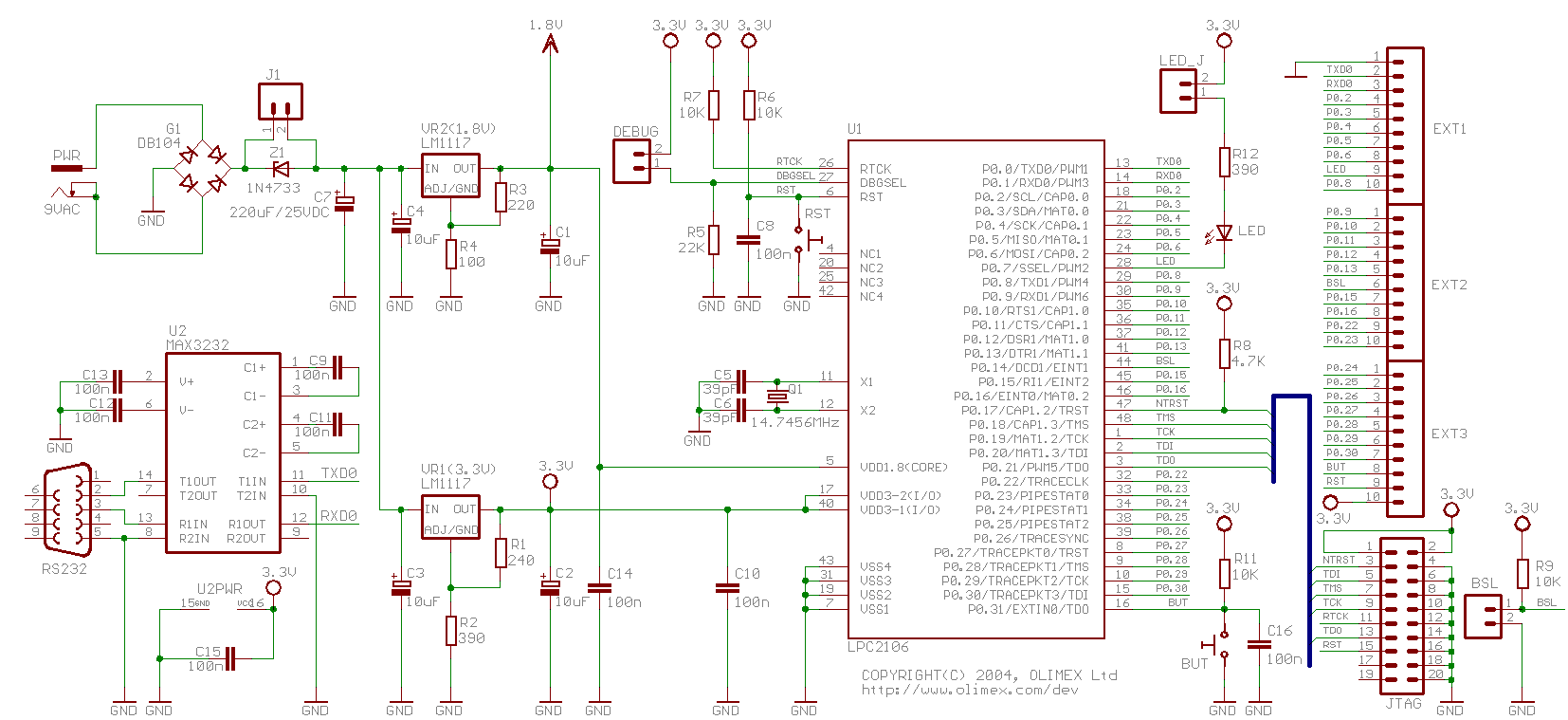

Features:
- MCU: 16/32 bit LPC2106 with 128K Bytes Program Flash, 64K Bytes RAM, RTC, 2x UARTs, I2C, SPI, 2x 32bit TIMERS, 7x CCR, 6x PWM, WDT, 5V tolerant I/O, up to 60MHz operation
- JTAG connector as per ARM's 2x10 pin layout, ARM-JTAG (Wiggler) compatible
- Extension header for uC pins
- 14.7456 Mhz crystal allow easy communication setup (4x PLL = 58,9824 Mhz CPU clock)
- RS232 interface circuit
- Reset circuit and button
- Debug jumper for JTAG enable/disable
- BSL jumper for bootloader enable/disable
- RTCK pullup resistor
- Push button with pullup
- Status LED
- Power plug-in jack
- Single power supply: +5-9VAC/DC required
- Two on board voltage regulators 1.8V and 3.3V with up to 800mA current
- Power supply filtering capacitor
Please note that this is a low cost development board and as such is shipped without development tools or documentation – please use the links below for documentation downloads.
Suitable development tools include:
Downloads:
Documents:
|
